PCB Assembly Sub-Contracting
Auto Insert (AI) Section
|
|
 |
|
 |
|
 |

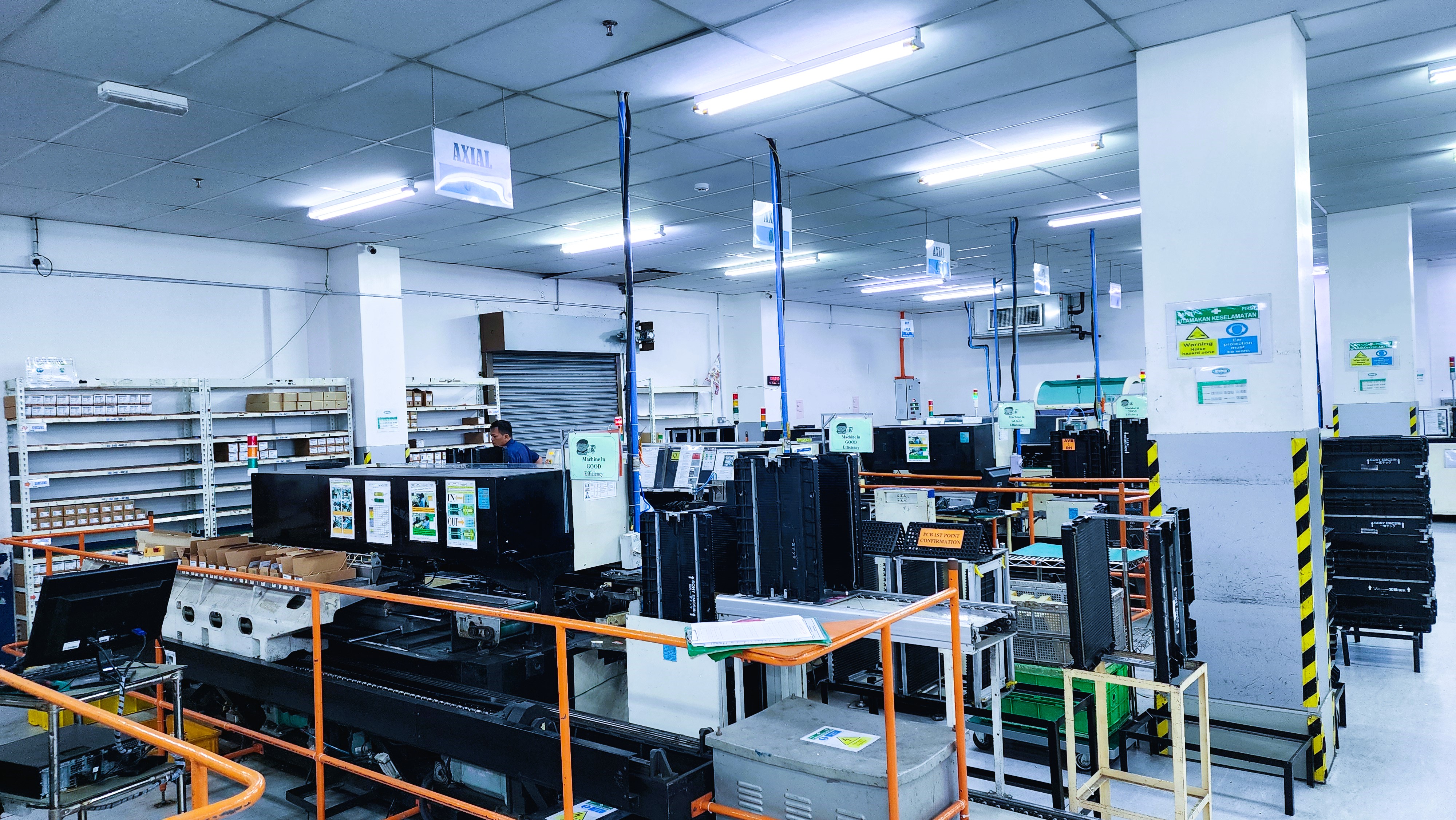

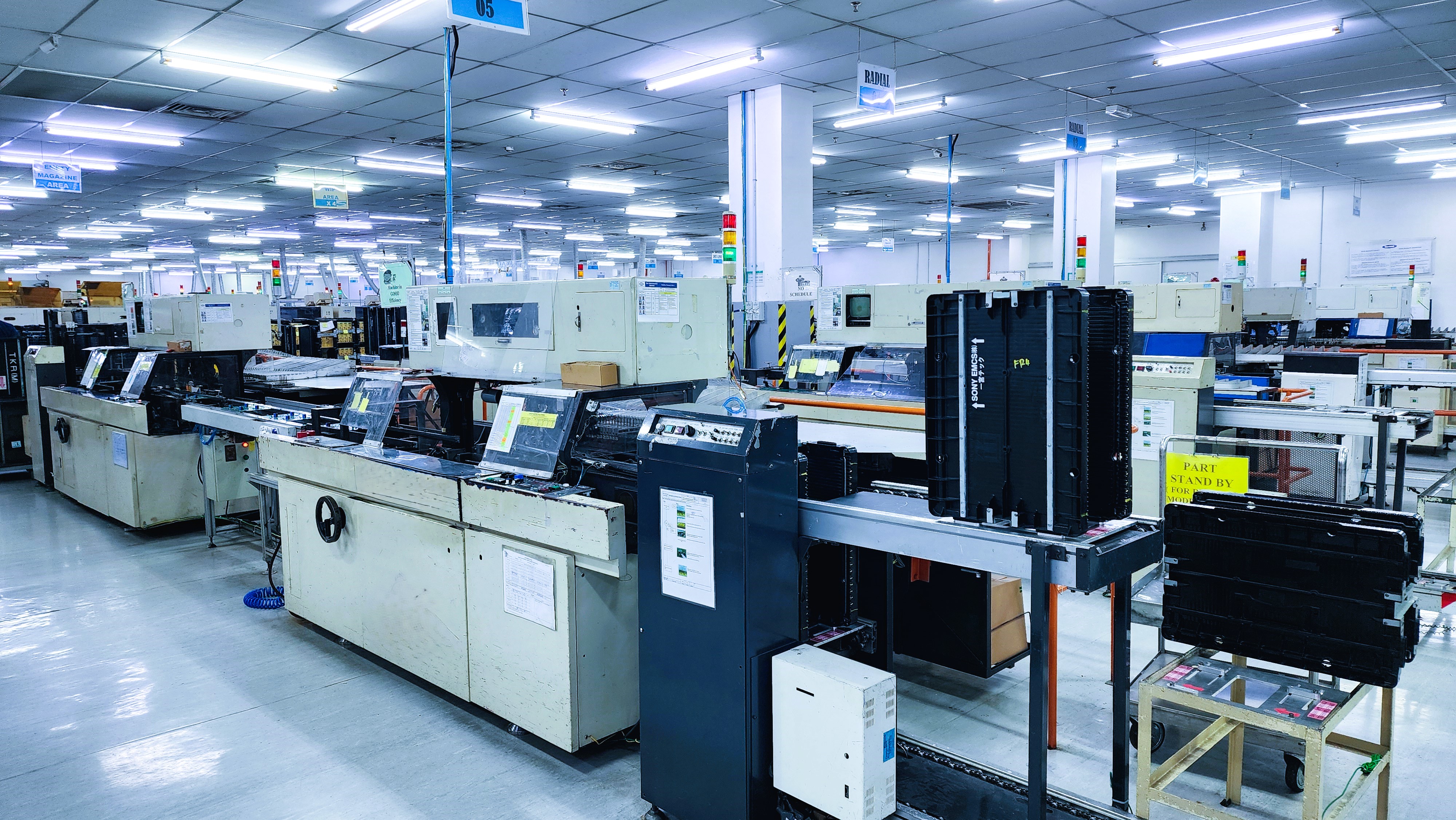

| Part Loading |
|
Jumper & Axial |
|
Jumper & Axial |
|

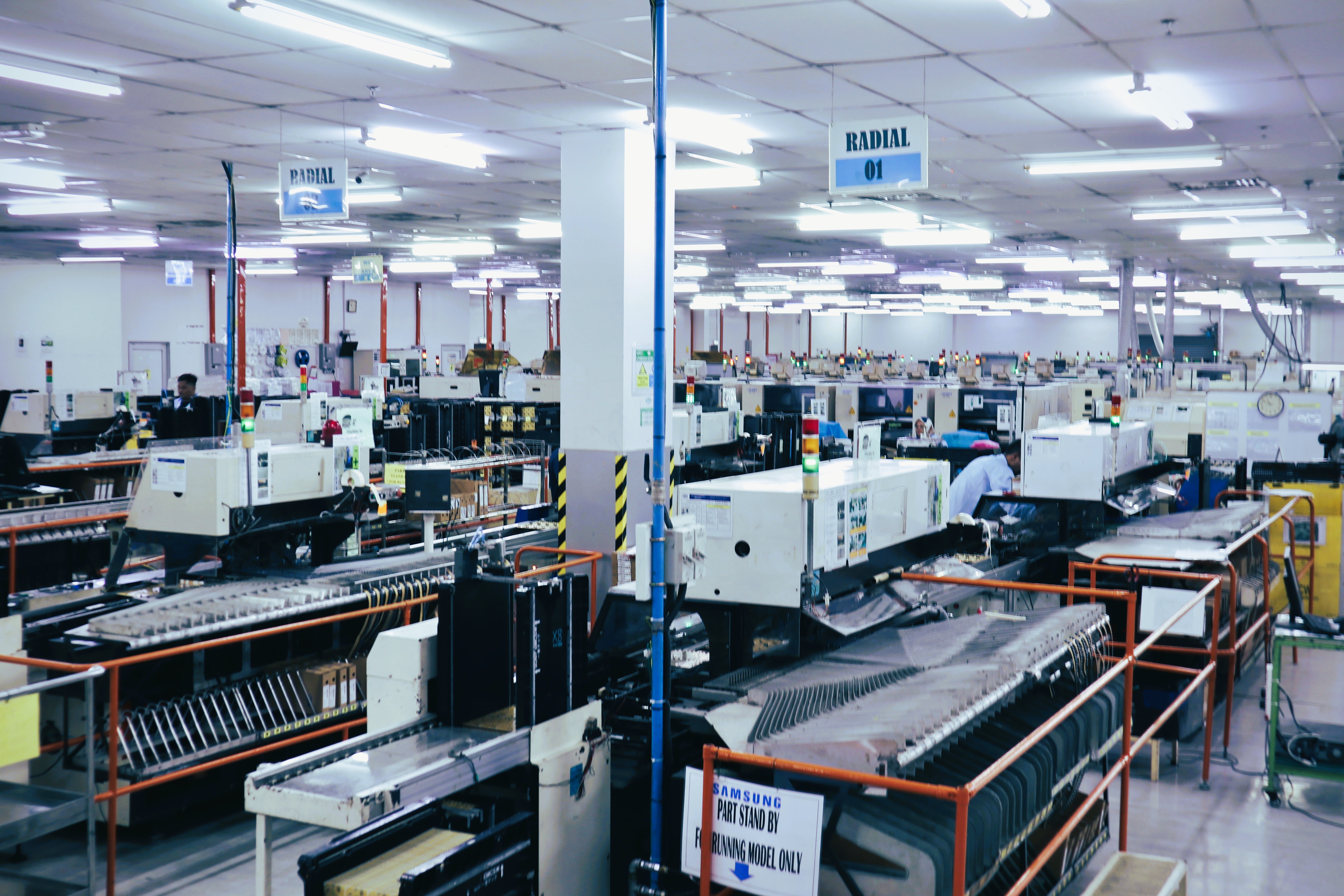

Radial |
Through Hole Assembly:
- Eyelet / hatome (Diameter 1.6mm ~ 2.5mm)
- Jumper Wire and Axial Component (5.0mm~12.5mm pitch)
- Radial Component (2.5mm ~ 7.5mm pitch)
Surface Mounting Assembly (SMT) Section
|
|
 |
 |

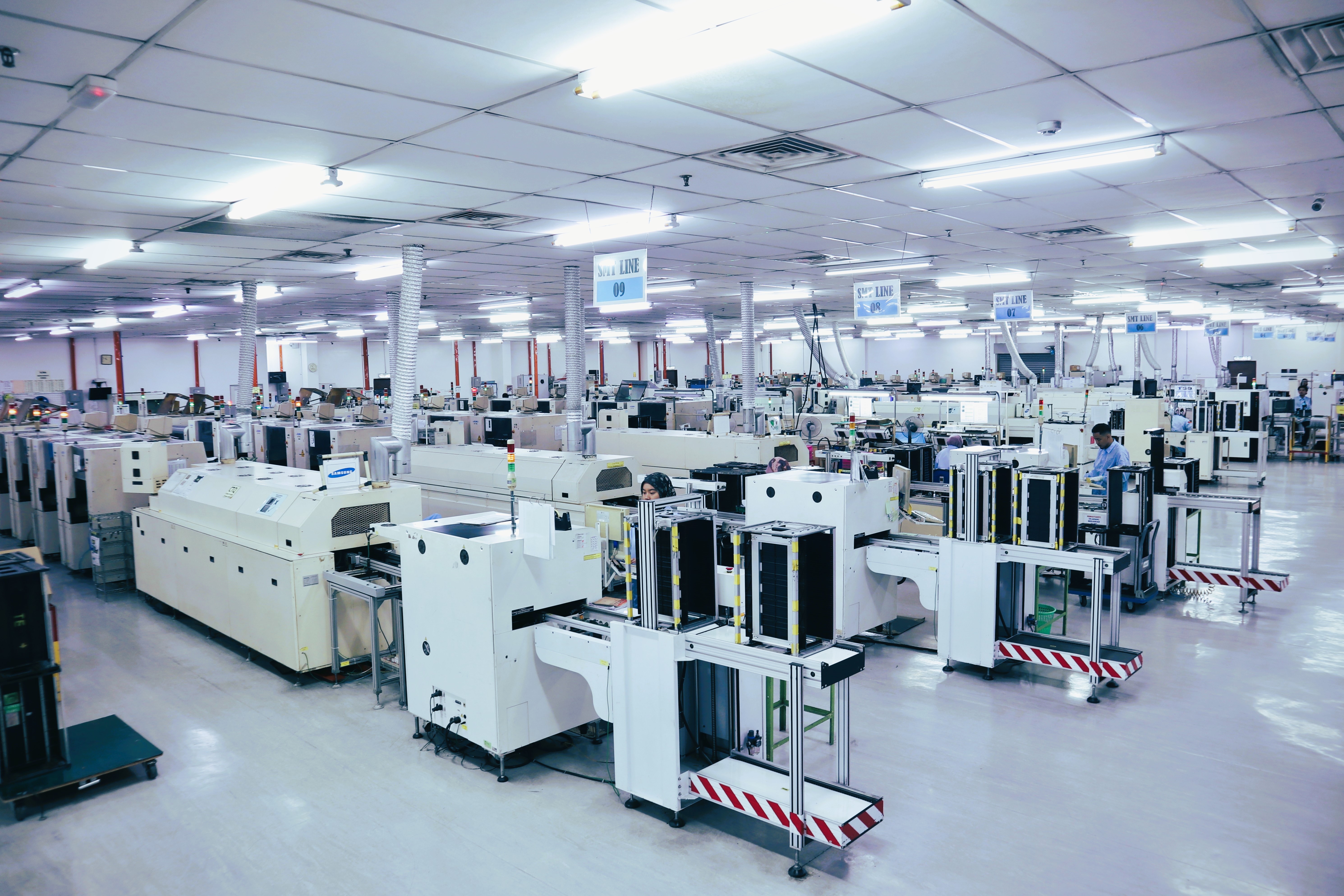

| SMT Production Floor |
|
SMT Production Floor |

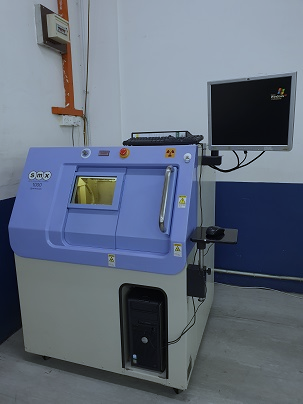

X Ray Machine |
|

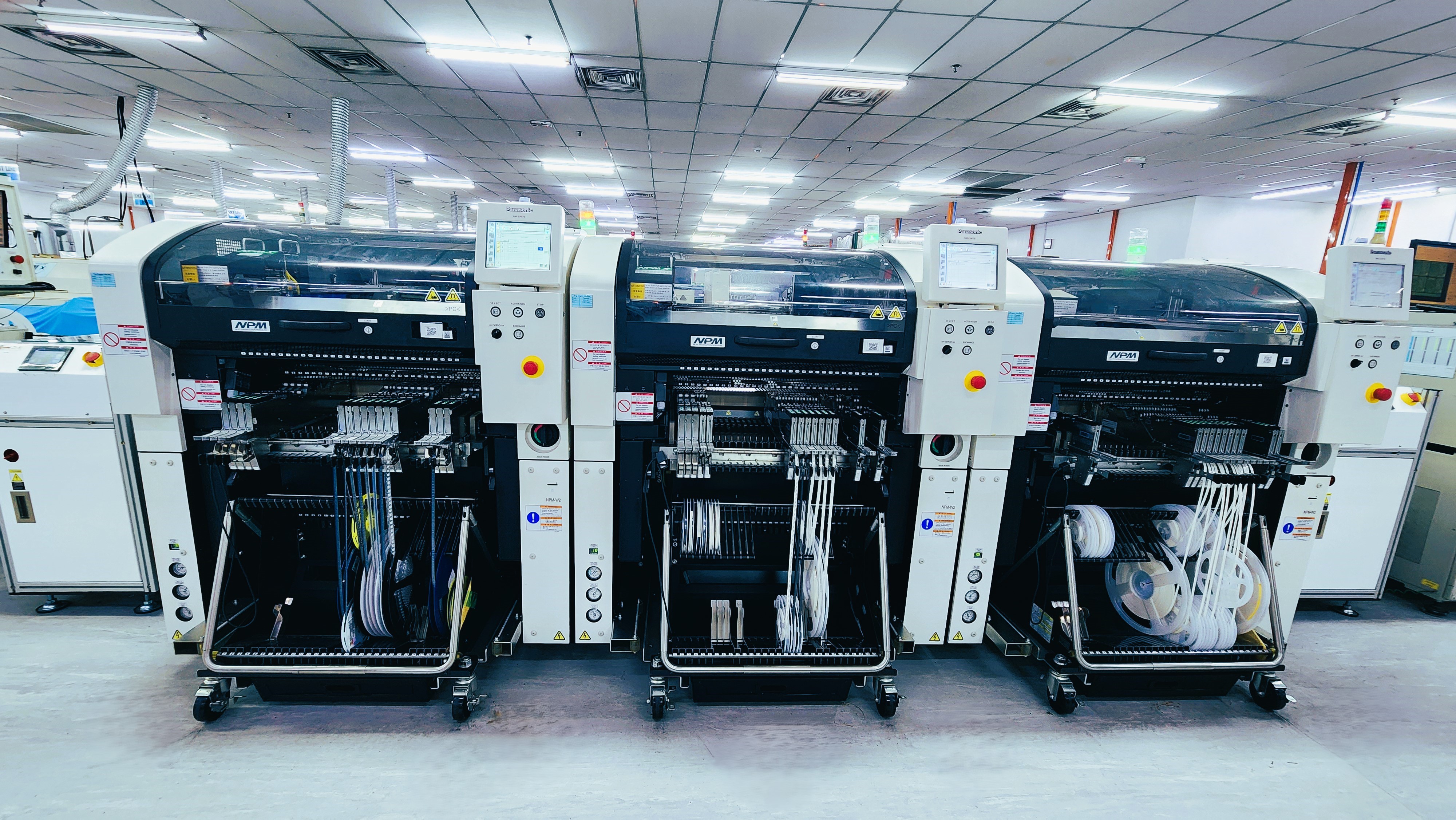

Surface Mount Machines
- Epoxy Glue and Solder paste Printer with 3D Inspection & Inline Solder Paste Inspection Machine.
- Able to mount 0402 ~ CSP , 0.3mm BGA & others.
- N2 reflow oven & normal air reflow.
- Automated Optical Inspection checking.
- SEMI Auto Soldering Machine.
- Optical 3D Measurement Machine.
- X Ray Inspection Machine.
Manual Insert (MI) Section
|
|
 |
|
 |
|
 |
| Production Line |
|

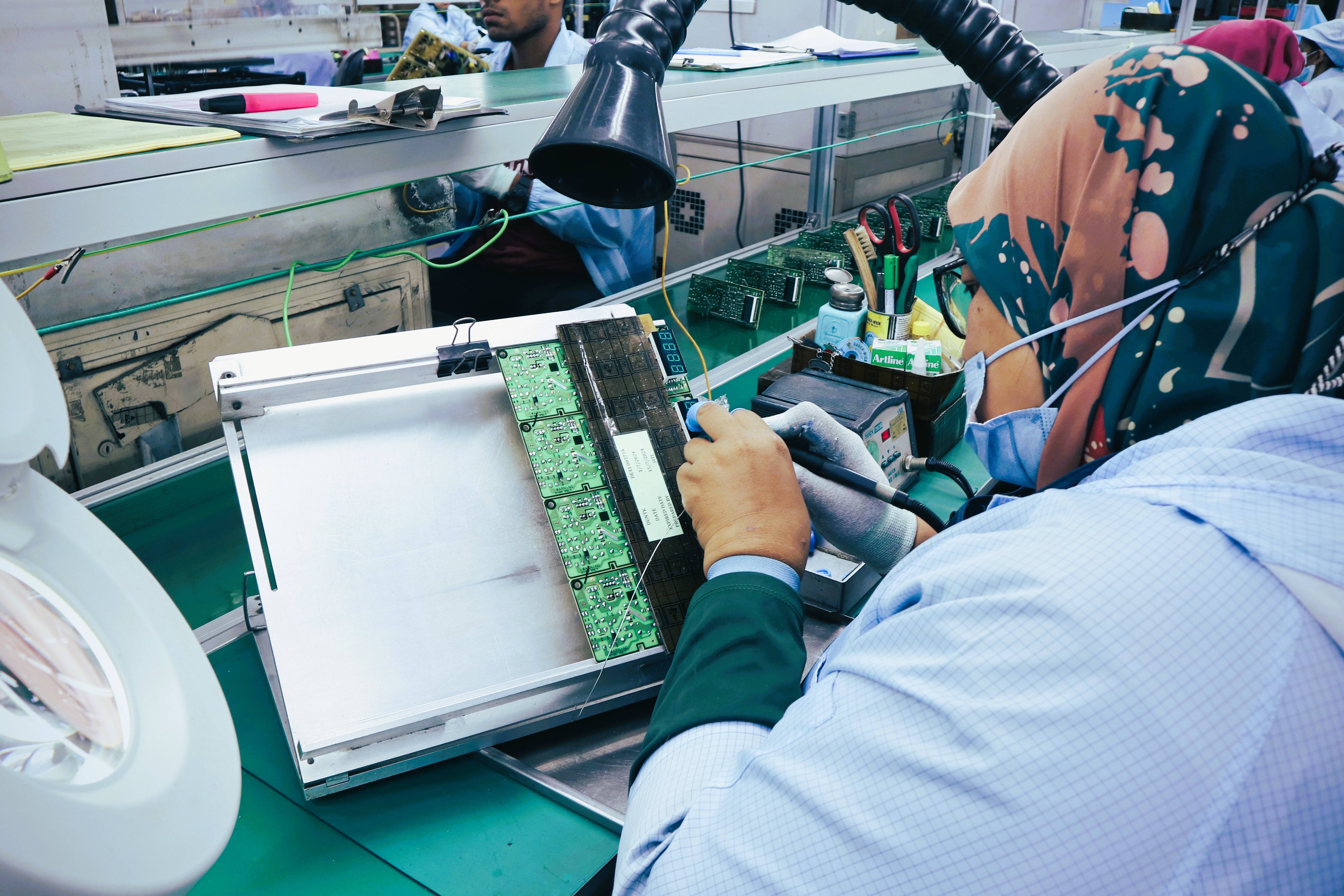

Manual Soldering |
|

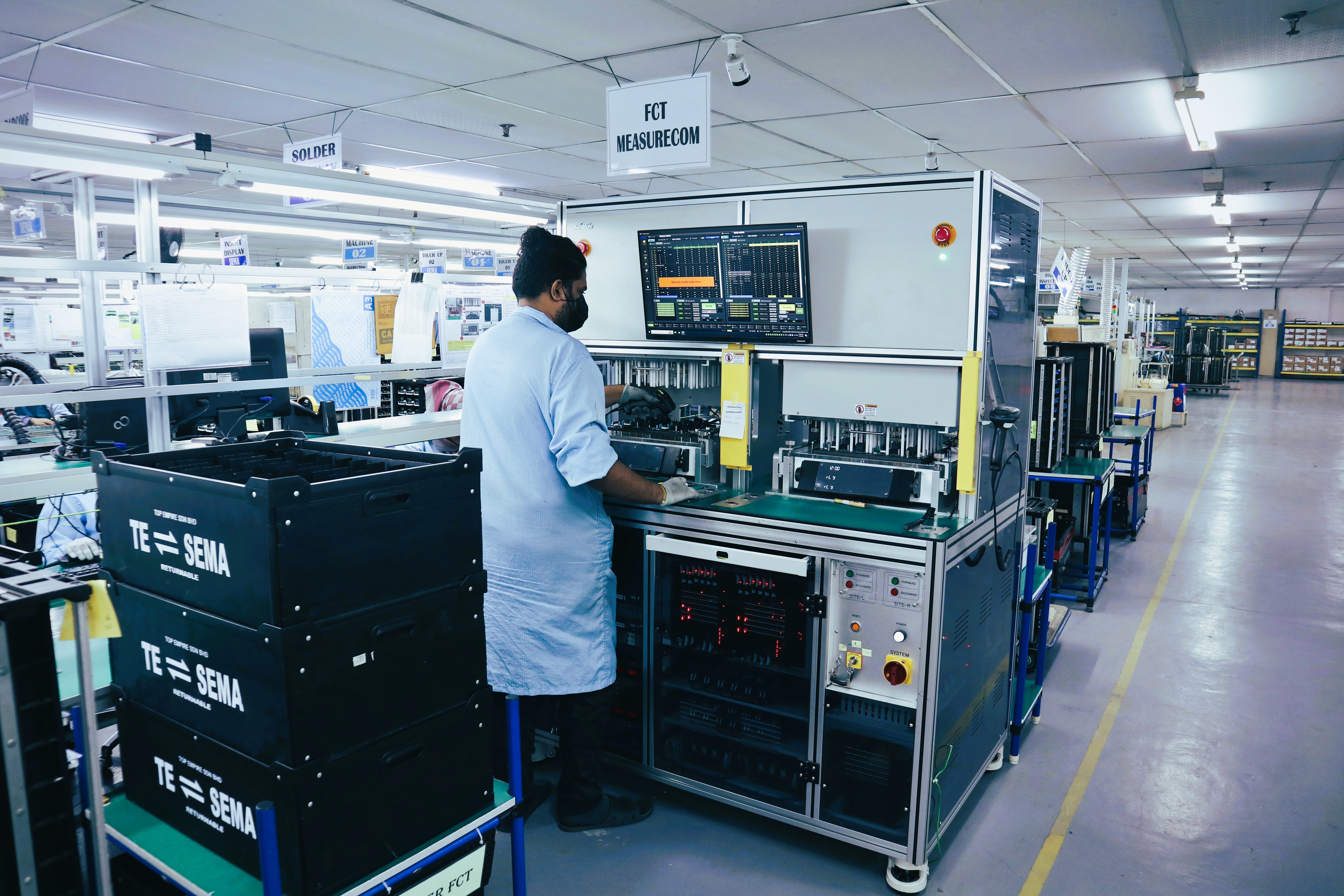

Functional Check |
|

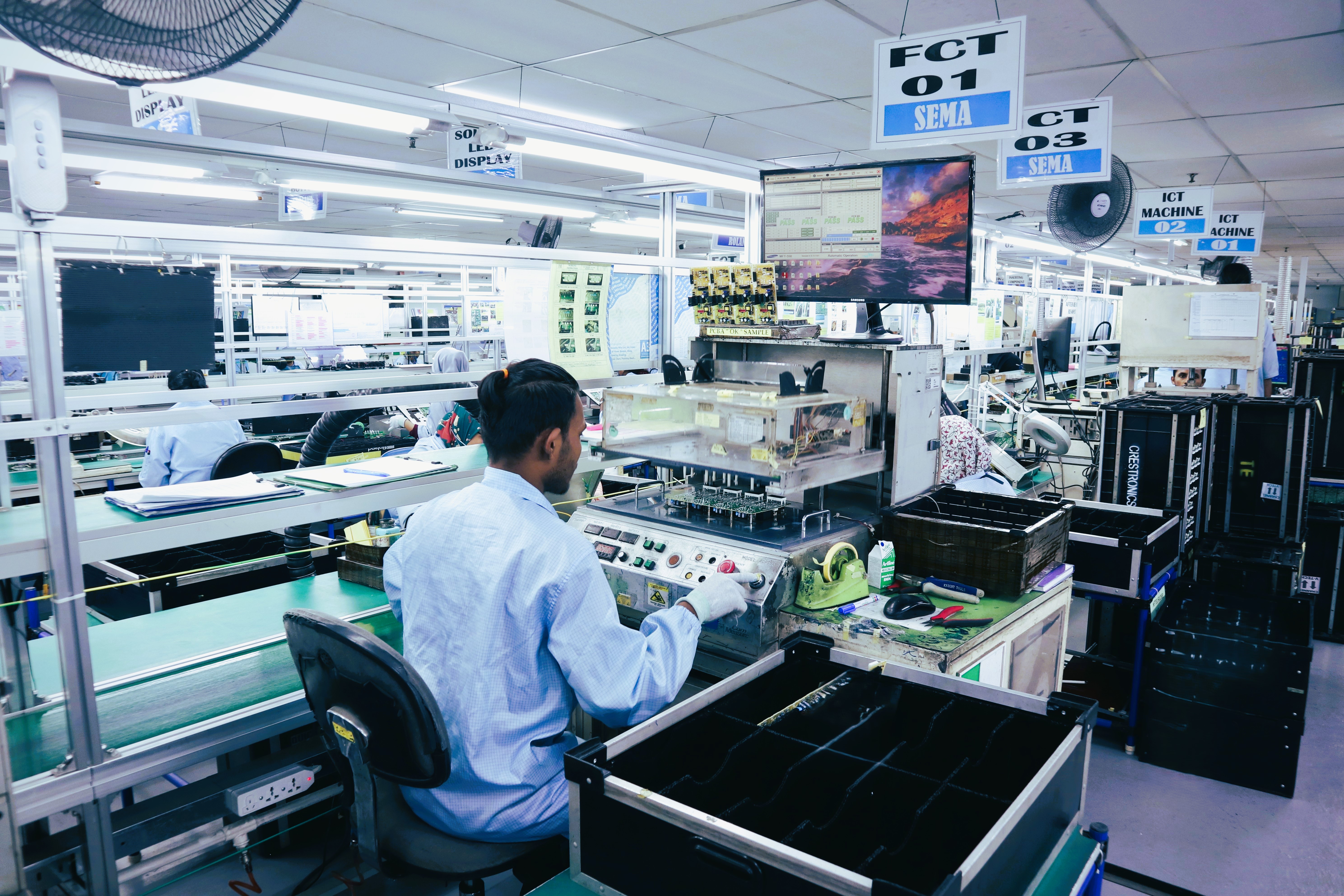

Functional Check |
Manual Assembly with Wave soldering Machine.
- In Circuit Tester (ICT Machines)
- Automatic Solder Inspection Machines
- Inline Inserting and Touch-up Conveyor
|
|
